dh4-15 VESA spacer bolt set

The VESA spacer bolts are compatible with all 75x75, 100x100 and 200x200mm VESA monitors. The spacer bolts create a distance of 15mm to your monitor.

These bolts allow the use of VESA holes that are otherwise difficult or impossible to access. It also creates a distance of 15mm from your monitor.

With these spacer bolts, you can easily attach your monitor of various brands to a monitor arm with a VESA hole pattern (75 x 75mm, 100x100mm, 200x200mm). Use the screws supplied for this.

Bitte lies diese Anleitung sorgfältig durch

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



IMPORTANT - KEEP FOR FUTURE REFERENCE.

- This product should always be used in accordance with the specified safety instructions.
- Do not install your VESA adapter in combination with the monitor in places where there are people below.
- Do not exceed the maximum weight of the compatible monitor models of 9kg, otherwise serious injury or damage to property may occur.
- Observe the maximum ambient temperature of 80°C when using the product.
- Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
- Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
- The product is designed exclusively for mounting with a hole pattern of 75x75, 100x100, 200x200 mm.
- After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Make sure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and the small screws and small parts they contain are inaccessible to children in order to minimize the risk of suffocation and other risks.

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. To ensure additional safety, the product should be stored away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to impair the service life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Wire brushes, metal or other sharp materials are also unsuitable for cleaning and should not be used.
- The use of a soft, damp cloth is recommended for gentle and effective cleaning.

For the disposal of this product, we recommend that you contact the relevant local authorities or waste disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg

E-mail: info@3idee.eu

If you need help with your article, we are here for you. We also appreciate any kind of feedback.

https://help.3idee.eu/de/kontakt



Scope of Delivery Accessories

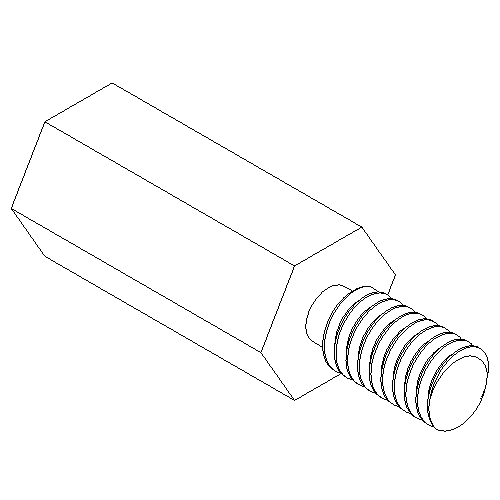

Spacer bolt SW7x15mm

4x Spacer bolt SW7x15mm

M4x10 screw with cross recess

4x M4x10 screw with cross recess



Horizontal / Vertical Alignment

Not all VESA adapters and monitors are suitable for vertical alignment. (upright)
This is due to the geometry of the adapter / monitor, which in some cases cannot be achieved in any other way.
We would like to point out that this information should not be disregarded under any circumstances, as the adapter will very quickly reach its durability limit if it is not mounted as specified.

We always try to develop monitors for vertical (upright) mounting.

The standard orientation of a monitor is horizontal.

Horizontal Mounting: YES

dh4-15 VESA spacer bolt set

Vertical Mounting: YES

dh4-15 VESA spacer bolt set


General Dimensions

Distance: 15mm

Width across flats: SW7

External thread: M4x8

Internal thread: M4x9

dh4-15 VESA spacer bolt set


Assembly Instruction

Step 1

Screw the spacer bolts to your monitor as shown. (Figure 1)

Use pliers or a 7mm box wrench to help.

dh4-15 VESA spacer bolt set Figure 1

Step 2

Make sure that all spacer bolts are properly tightened. (Figure 2)

dh4-15 VESA spacer bolt set Figure 2

Step 3

⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.



We recommend a second person for this step.

Now lift the monitor and hold it against your monitor mount. Attach your monitor and the spacer bolts with the 4 M4x8 screws provided. (Figure 3)

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

dh4-15 VESA spacer bolt set Figure 3

Step 4

Please make sure that all 4 screws are tight. (Figure 4)

dh4-15 VESA spacer bolt set Figure 4
