acr-gy VESA adapter

This VESA adapter is compatible with the following ACER brand monitors compatible:

QG240YH3

QG240YS3

QG270H3

QG270S3bipx

⚠ CAUTION

To minimize the risk of injury, it is important to read all instructions carefully before installation. We accept no liability for personal injury or damage to property caused by improper use of this product.
It is also essential to observe the technical specifications of the product.

1. Read all instructions carefully.

2. Incorrect installation can lead to damage or serious injury. Make sure that the product and the monitor are securely mounted before using it.

3. Make sure that the bracket to which the product is attached can easily support the total weight of the monitor, computer and adapter.

Technical Specifications

Maximum load capacity: 7 kg / 15.4 lbs
VESA standard compatibility: 75x75 mm
Material: Plastic
Pivot angle: 90°
Maximum operating temperature: 35°C / 95°F
Maximum ambient temperature: 35°C / 95°F

⚠ WARNING

Exceeding the maximum load capacity, operating temperature or ambient temperature can lead to serious injury or damage.

Important Safeguards

		Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.

IMPORTANT - KEEP FOR FUTURE REFERENCE.

• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
• The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg

mail: info@3idee.eu

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact

Scope of Delivery Accessories

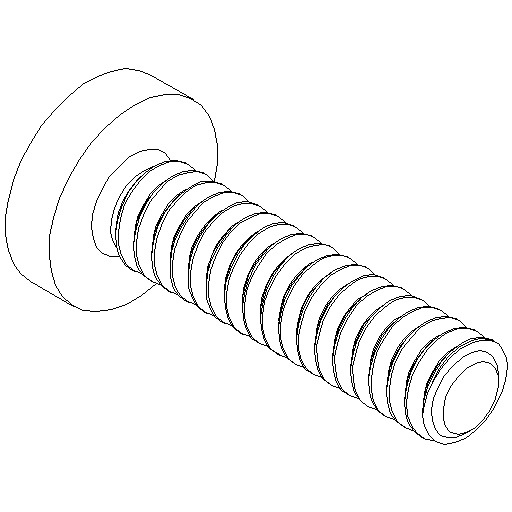

4x M4x14 screw with cross recess (SP2)

2x M4x16 screw with cross recess (SP32)

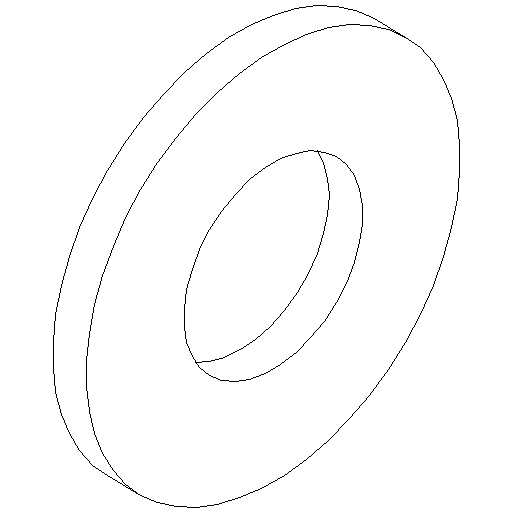

2x U-washer for M4 (SP32)

⚠ NOTE: Please check that all parts of the accessories are complete before assembly. If anything is missing, please contact our customer service team immediately by email or phone. We will be happy to help you.

Horizontal / Vertical Alignment

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

Horizontal Mounting: YES

Vertical Mounting: YES

Assembly Instruction

Step 1

Place your Acer monitor on a safe, soft surface to avoid damaging it during installation. Remove the stand of your Acer monitor if it is already attached.

To do this, loosen the 2 screws located on the underside of the mount.

Step 2

Now attach the VESA adapter to the mounting of your Acer monitor as shown. (Figure 1)

Figure 1

Step 3

Now take the 2x M4x16 screw with cross recess from the screw package and 2x washer for M4 and place them on top of each other as shown.
(Figure 2)

Figure 2

Step 4

Only screw the 2x M4x16 including the washers into the VESA adapter from below as shown. (Figure 3)

Figure 3

Step 5

⚠ NOTE: If the instructions in this step are not suitable for your device, please follow the mounting guidelines provided by the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.

We recommend a second person for this step.

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

⚠ NOTE: Make sure you use the right screws!

(Figure 3)

Figure 3

Step 6

Now check again that all screws are correctly tightened and that the monitor is securely mounted. (Figure 4)
