hpm-f Typ1 / Typ2 VESA adapter (V2)

The VESA adapter is compatible with the following products from hp (hp.com):

M22f

M24f

M24fd

M24fw

M27f

M27fd

M27fq

M27fw

M32f

M32fw

The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).



Important Safeguards

Please read these instructions carefully

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



IMPORTANT - KEEP FOR FUTURE REFERENCE.

• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee Technologies S.à r.l.
5 Um Lenster Bierg
L-6125 Junglinster
Luxembourg

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact



Scope of Delivery Accessories

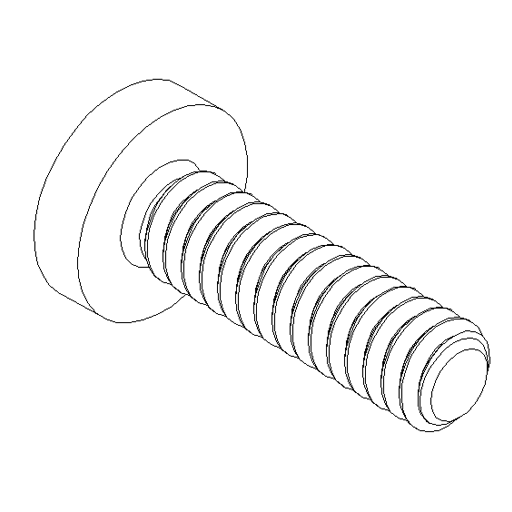

M4x14 screw with cross recess (SP1)

4x M4x14 screw with cross recess (SP1)

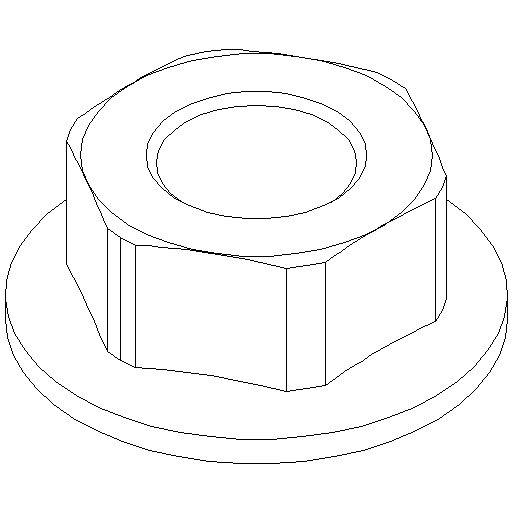

M4 nut with flange (SP1)

4x M4 nut with flange (SP1)



Horizontal / Vertical Alignment

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

Horizontal Mounting: YES

hpm-f Typ1 / Typ2 VESA adapter (V2)

Vertical Mounting: NO

hpm-f Typ1 / Typ2 VESA adapter (V2)


Assembly Instruction

Step 1

Lay your HP monitor flat on a safe and soft surface. Now remove the stand of your monitor.

Move the white clip of your HP monitor to the position shown. (Figure 1)

hpm-f Typ1 / Typ2 VESA adapter (V2) Figure 1

Step 2

Now attach the VESA adapter to your monitor arm using the included screws. (Figure 2)

Tighten the screws firmly enough, but please remember that it is plastic.

Alternative: Wall mounting is also possible, but screws and dowels are not included.

hpm-f Typ1 / Typ2 VESA adapter (V2) Figure 2

Step 3

Please check again if all screws are tightened properly. (Figure 3)

hpm-f Typ1 / Typ2 VESA adapter (V2) Figure 3

Step 4

Now slide your monitor diagonally, from bottom to top into the 3idee VESA adapter. (Figure 4)

hpm-f Typ1 / Typ2 VESA adapter (V2) Figure 4

Step 5

Please check whether the monitor is correctly locked into the VESA adapter. The monitor will be able to move in the adapter despite correct mounting. This is due to manufacturing tolerances of the monitor mount, as well as us.

Nevertheless, the safety of the adapter is guaranteed by a correct engagement of the clip.

hpm-f Typ1 / Typ2 VESA adapter (V2)
