le-idc3 VESA adapter

The VESA adapter is compatible with the following Lenovo products (lenovo.com):

IdeaCentre AIO 3 27 (R3-Windows 11 Home-8GB-512GB)

IdeaCentre AIO 3 27 (R5-Windows 11 Home-16GB-512GB)

IdeaCentre AIO 3 27 (R7-Windows 11 Home-16GB-1TB)

IdeaCentre AIO 3 Gen 6

IdeaCentre AIO 3i 24 (i5-Windows 11 Home-16GB-512GB)

IdeaCentre AIO A340-24ICK

With the VESA adapter, you can easily attach your LENOVO All-in-One PC to a monitor arm with a VESA hole pattern (75 x 75 mm). Use the supplied screws and nuts for this.

Direct wall mounting is NOT possible, as the VESA adapter already contains metric threads through which no screws can be inserted for mounting to the wall.


Important Safeguards

Please read these instructions carefully

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee Technologies S.à r.l.
5 Um Lenster Bierg
L-6125 Junglinster

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.



Scope of Delivery Accessories

M4x14 Phillips head screw (SP2)

4x M4x14 Phillips head screw (SP2)

M3x20 Phillips head screw (SP28)

4x M3x20 Phillips head screw (SP28)


Horizontal / Vertical Alignment

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

Horizontal Mounting: YES

le-idc3 VESA adapter

Vertical Mounting:  YES

le-idc3 VESA adapter

Assembly Instruction as Video


Assembly Instruction

Step 1

Place your Lenovo All-in-One PC securely on a soft surface.

Now remove the base of your Lenovo monitor if it is attached.

Step 2

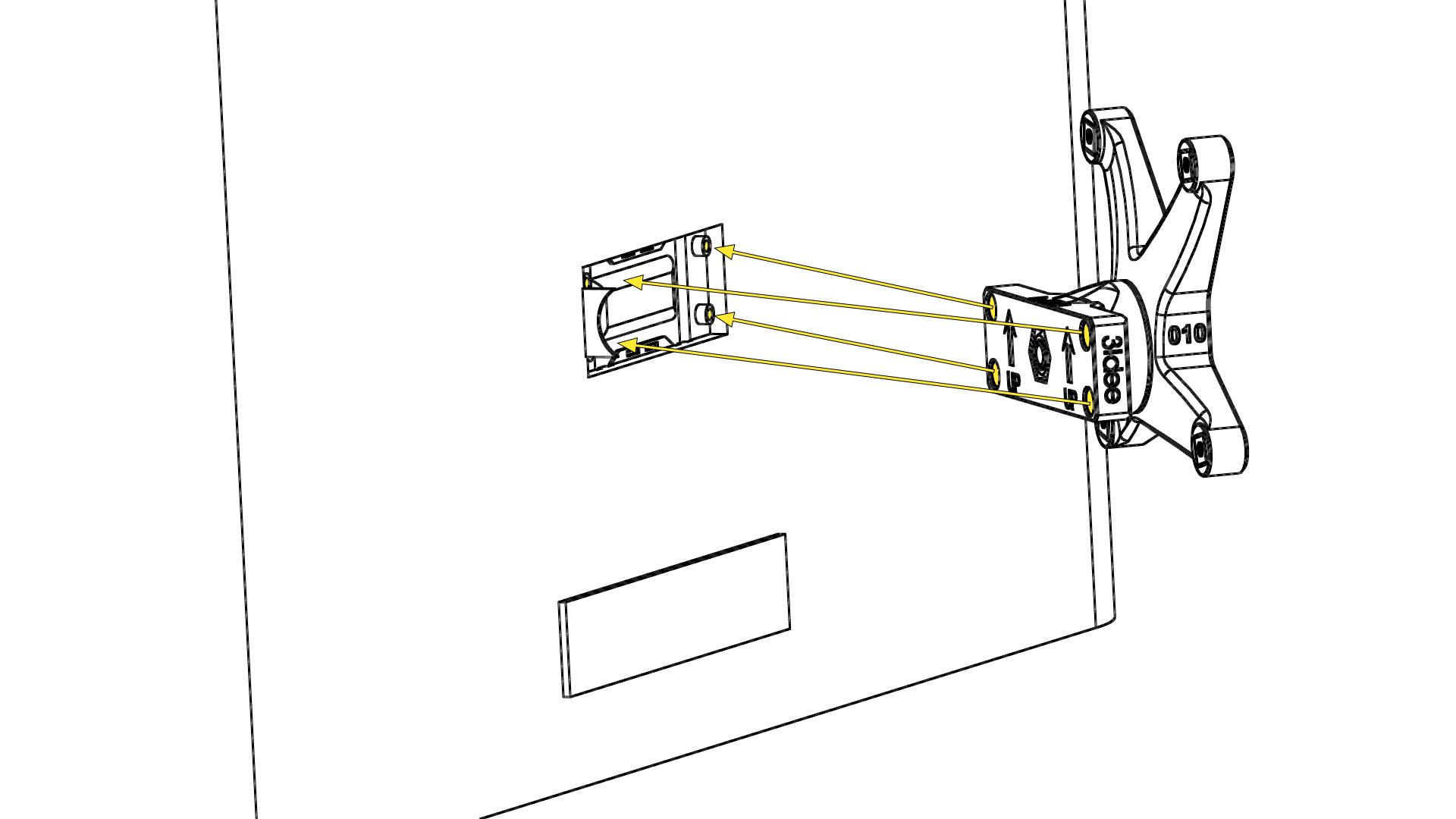

Position your 3idee VESA adapter with the arrow and text "UP" so that it is visible to you and with the arrow pointing towards the top edge of the screen.

(Figure 1)

le-idc3 VESA adapter Figure 1

Step 3

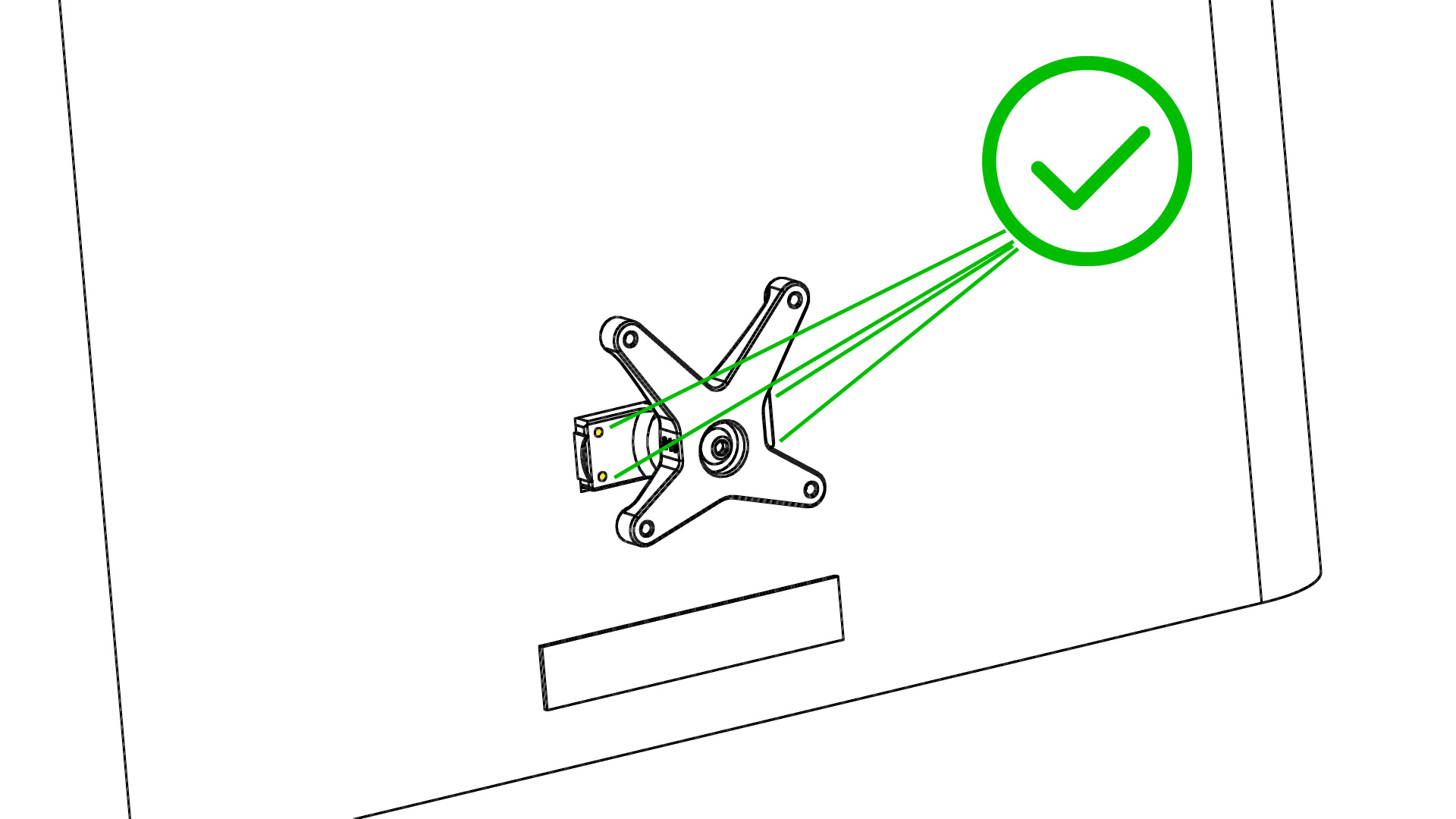

Attach the VESA adapter to the monitor mount as shown.

(Figure 2)

le-idc3 VESA adapter Figure 2

Step 4

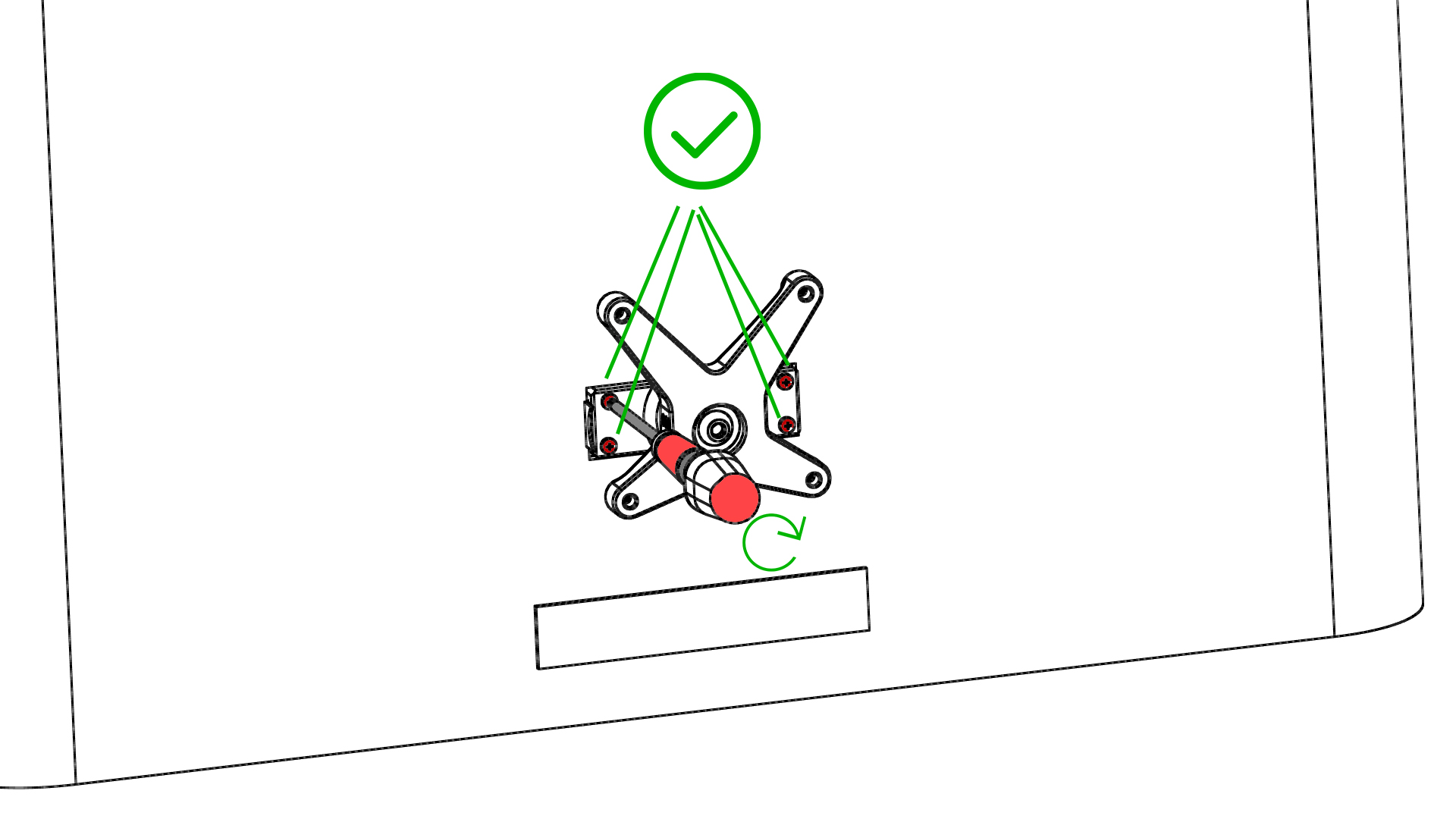

Take the 4 supplied M3x14 pan-head screws (separate screw bag) and attach the adapter to the monitor.

(Figure 3)

le-idc3 VESA adapter Figure 3

Step 5

⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.


We recommend a second person for this step.

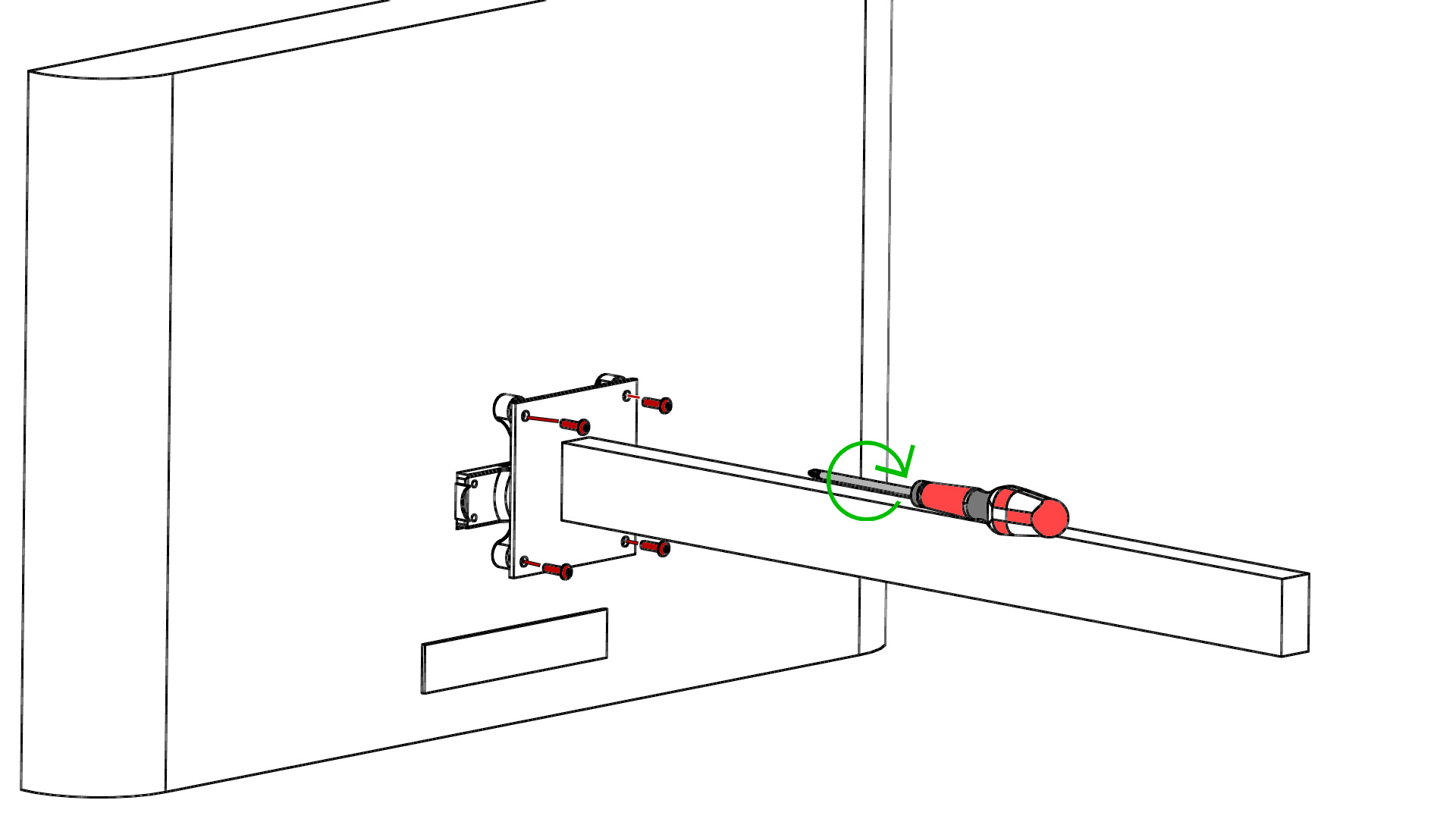

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

ATTENTION: Make sure you use the right screws!

(Figure 4)

le-idc3 VESA adapter Figure 4

Step 6

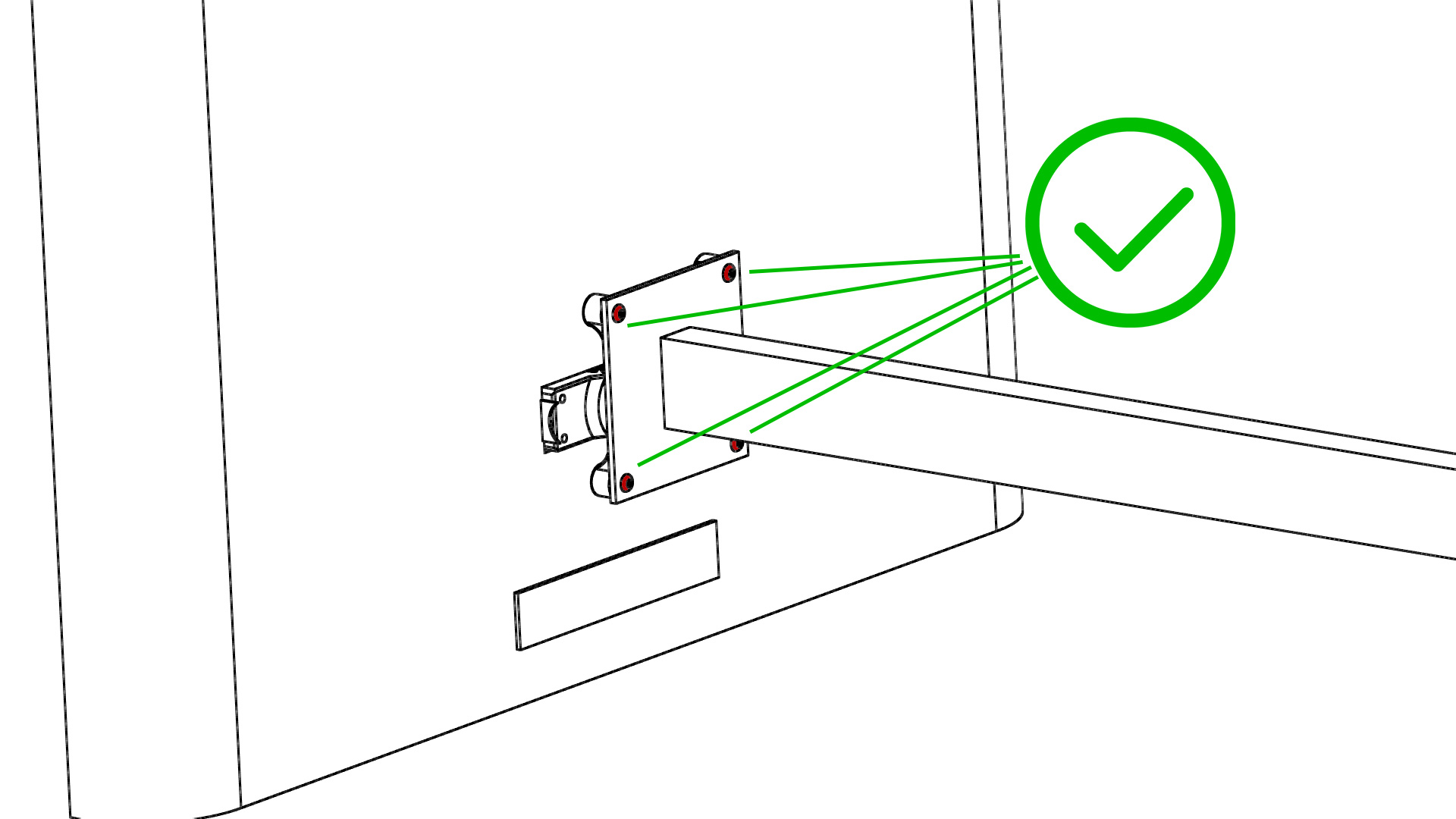

Tighten the screws firmly. Done! (Figure 5)

le-idc3 VESA adapter Figure 5
