acr-sb VESA adapter

The VESA adapter is compatible with the following products from acer (acer.com):

242Y Ayi

R242Y

R242Y A

R270 SMIPX

R272

R272 H

R272E

R272yi

RL272E

SA241Y bi

SA271 bi

SB241Y Abi

SB271 bi

⚠ WARNING

To minimize the risk of injury, it is important to read all instructions carefully before installation. We accept no liability for personal injury or damage to property caused by improper use of this product.
It is also essential to observe the technical specifications of the product.

1. Read all instructions carefully.

2. Incorrect installation can lead to damage or serious injury. Make sure that the product and the monitor are securely mounted before using it. 3.

3. Make sure that the bracket to which the product is attached can easily support the total weight of the monitor, computer and adapter.





FAQ - Frequently asked questions



Technical Specifications

  • Maximum monitor weight: 7 kg / 15.4 lbs
  • VESA standard compatibility: 75x75 mm
  • Material: plastic
  • Pivot angle: not compatible
  • Maximum operating temperature: 35°C / 95°F
  • Maximum ambient temperature: 35°C / 95°F

⚠ WARNING

Exceeding the maximum load capacity, operating temperature or ambient temperature can lead to serious injury or damage.



Important Safeguards

Please read these instructions carefully

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



IMPORTANT - KEEP FOR FUTURE REFERENCE.

• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg

mail: info@3idee.eu

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact



Scope of Delivery Accessories

M4x14 Phillips Pan Head Screw (SP2)

4x M4x14 Phillips Pan Head Screw (SP2)

⚠ NOTE: Please check that all parts of the accessories are complete before assembly. If anything is missing, please contact our customer service team immediately by email or phone. We will be happy to help you.



Horizontal / Vertical Alignment

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

Horizontal Mounting: YES

acr-sb VESA adapter

Vertical mounting:  NO

acr-sb VESA adapter


Assembly Instruction

Step 1

Remove the base of your monitor if it is already attached. To do this, simply pull the monitor upwards with a little force.


Step 2

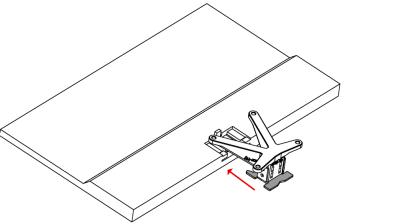

Now insert the 3idee VESA adapter into the previously prepared mounting. (Figure 1)

acr-sb VESA adapter Figure 1

Step 3

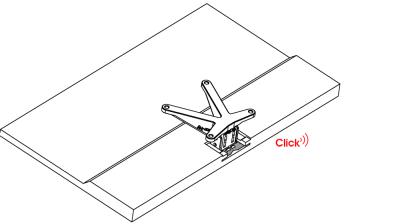

Check whether the VESA adapter is correctly engaged. You should hear a soft "click" sound when you push it in. (Figure 2)

acr-sb VESA adapter Figure 2

Step 4

⚠ NOTE: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.



We recommend a second person for this step.

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

⚠ NOTE:Make sure you use the right screws!

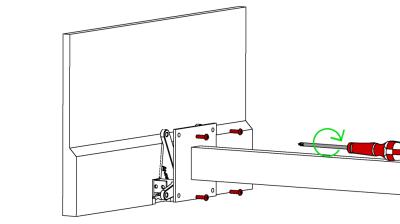

(Figure 3)

acr-sb VESA adapter Figure 3

Step 5

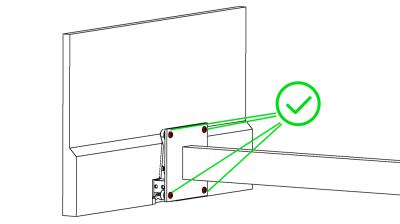

Check again to make sure that all screws have been tightened properly. (Figure 4)

acr-sb VESA adapter Figure 4

Step 6

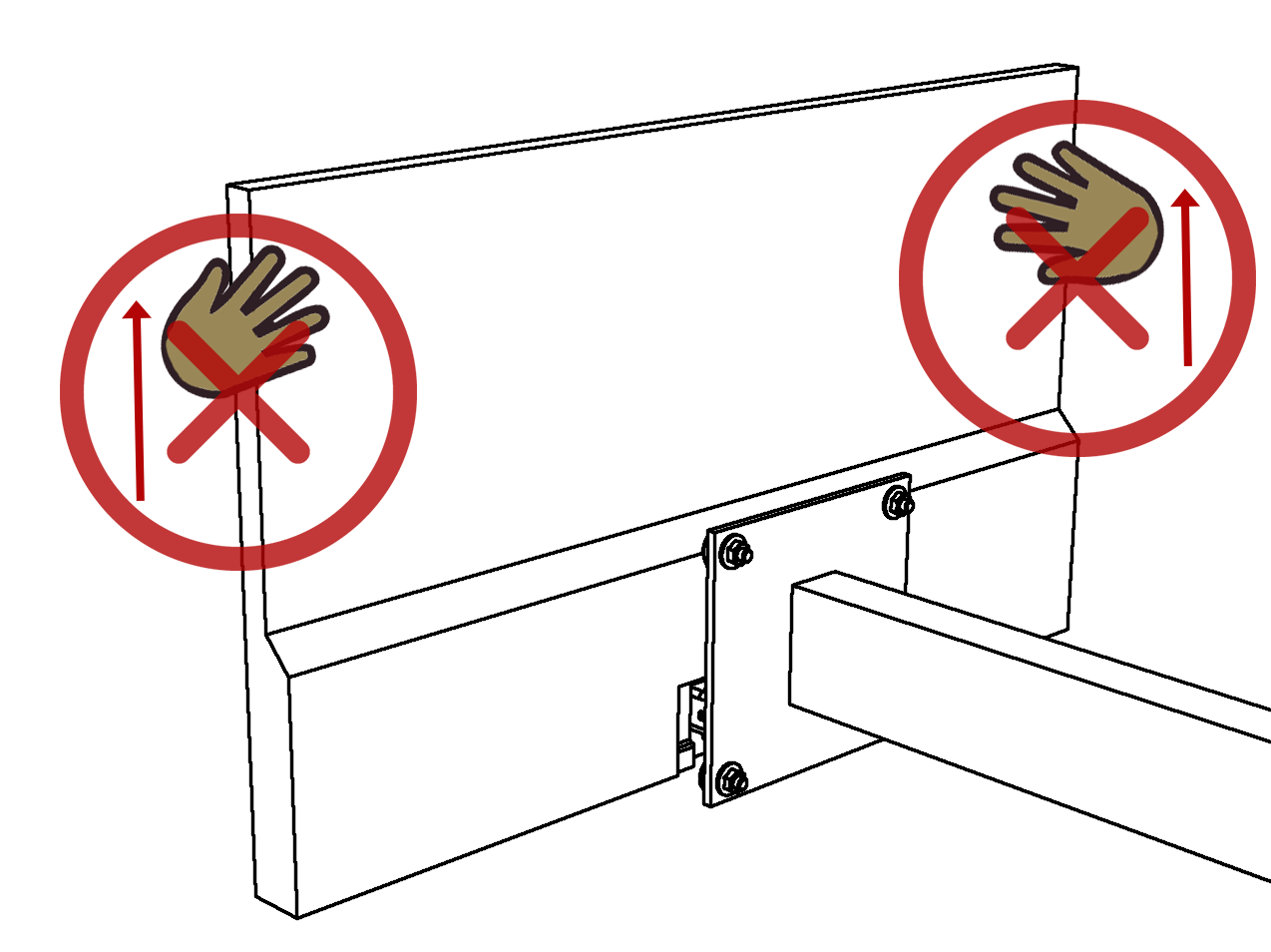

ATTENTION: Make sure that the VESA adapter comes off when you pull the monitor upwards. This is because the monitor is designed to allow the original Acer monitor stand to be removed (Figure 5).

acr-sb VESA adapter Figure 5
