smsng-g7 VESA adapter (V2)

The VESA adapter is compatible with monitors from the Samsung (samsung.com) Odyssey G6, G7, G8, neo G8, G9, neo G9 series and other models:

C27G73TQSR

C32G73

C49G94TSSR

C49G95T

C49HG90DMU

C49J890DKR

C49J890DKU

C49J890DKUXEN

C49RG90

C49RG90SSI

C49RG90SSN

C49TG90

C49UG90

C49UG90DMR

CHG90

CRG9

G6

G65B

G7

G70A

G70B

G70NC

G73TF

G75

G75T

G7A

G9

G95A

G95NA

G95NC

G95T

LC27G74TQSR

LC27G75TQ,

LC27G75TQSEXXP

LC27G75TQSEXXP

LC27G75TQSNXZA

LC27G75TQSNXZA

LC27G75TQSRXEN

LC27G75TQSRXEN

LC32G75T

LC32G75TQ

LC49G95T

LC49G97T

LC49G97TSSNXDC

LC49J890DKEXXY

LC49J890DKUXEN

LC49RG90SSIXCI

LC49RG90SSNXZA

LC49RG90SSRXUF

LC49RG90SSUXEN

LC49UG90DMEXXM

LS49C954U

LS49C954UAKXKR

LS49CY955ENXZA

LS49CY955EUXEN

LS49KG954ECXZW

LS57CG952NNXZA

S49A950U

S49A950UIN

S49A950UIU

S49AG952NN

S49AG95NC

S49C954U

S57C952NN

S95UC

neo G7

neo G9

With the VESA adapter, you can conveniently attach your SAMSUNG monitor to a monitor arm with a VESA hole pattern (75 x 75 mm). Use the supplied screws and nuts for this.

Direct wall mounting is NOT possible as the VESA adapter already contains metric threads through which no screws can be inserted for mounting to the wall.



FAQ - Frequently asked questions



Important Safeguards

Please read these instructions carefully

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



IMPORTANT - KEEP FOR FUTURE REFERENCE.

• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee Technologies S.à r.l.
5 Um Lenster Bierg
L-6125 Junglinster
Luxembourg

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact



Scope of Delivery Accessories

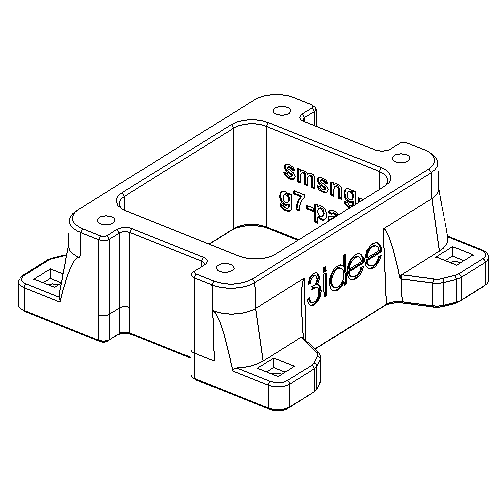

smsng-g7-part1

1x smsng-g7-part1

smsng-g9-part2

1x smsng-g9-part2

M4x60 Screw with cross recess (SP40)

4x M4x60 Screw with cross recess (SP40)

M4x35 Screw with cross recess (SP33)

4x M4x35 Screw with cross recess (SP33)

M4x14 Screw with cross recess (SP2)

4x M4x14 Screw with cross recess (SP2)



Horizontal / Vertical Alignment

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

Horizontal Mounting: YES

smsng-g7 VESA adapter (V2)

Vertical mounting: YES

smsng-g7 VESA adapter (V2)


Assembly Instruction

Step 1

To get the best possible mounting, please check if your Samsung monitor belongs to Option A or Option B models.

Option A: G6, G65B, G7, NEO G7, G7A, G70A, G70B, G70NC, G73TF, G75, G75T, CRG9, CHG90, G94T, G95T

Option B: G8, neo G8, G9, neo G9



To ensure an optimal user experience, you should check whether you need the extension piece (smsng-g9-part2) or not.


Step 2 (Option A)

Take the screws from SP33 and attach the VESA adapter to the mounting of your monitor as shown. (Figure 1)

Tighten all 4 screws.

smsng-g7 VESA adapter (V2) Figure 1

Step 2 (Option B)

Take the screws from SP40 and attach the VESA adapter and the extension piece to the mounting of your monitor as shown. (Figure 2)

Tighten all 4 screws.

smsng-g7 VESA adapter (V2) Figure 2

Step 3 (Option A)

Please check that all 4 screws are properly tightened. (Figure 3)

smsng-g7 VESA adapter (V2) Figure 3

Step 3 (Option B)

Please check that all 4 screws are properly tightened (Figure 4)

smsng-g7 VESA adapter (V2) Figure 4

Step 4

⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.



We recommend a second person for this step.

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

ATTENTION: Make sure you use the right screws!

(Figure 5)

smsng-g7 VESA adapter (V2) Figure 5

Step 5

Please make sure that all 4 screws are tight. (Figure 6)

smsng-g7 VESA adapter (V2) Figure 6
