ass-vz VESA adapter (V3)

The VESA adapter is compatible with the following products from Asus (asus.com):

V229

VX228H

VX229H

VX238H

VX248H

VX24AH

VX279

VX279Q

VZ239HE

VZ249HE

VZ279H

VZ279HE

VZ27AQ

The VESA adapter allows you to conveniently mount your ASUS brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).



Important Safeguards

Please read these instructions carefully

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



IMPORTANT - KEEP FOR FUTURE REFERENCE.

• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee Technologies S.à r.l.
5 Um Lenster Bierg
L-6125 Junglinster
Luxembourg

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact



Scope of Delivery Accessories

M4x14 Screw with cross recess (SP6 or SP2)

4x M4x14 Screw with cross recess (SP6 or SP2)

M6x25 Screw with cross recess(SP6)

1x M6x25 Screw with cross recess(SP6)

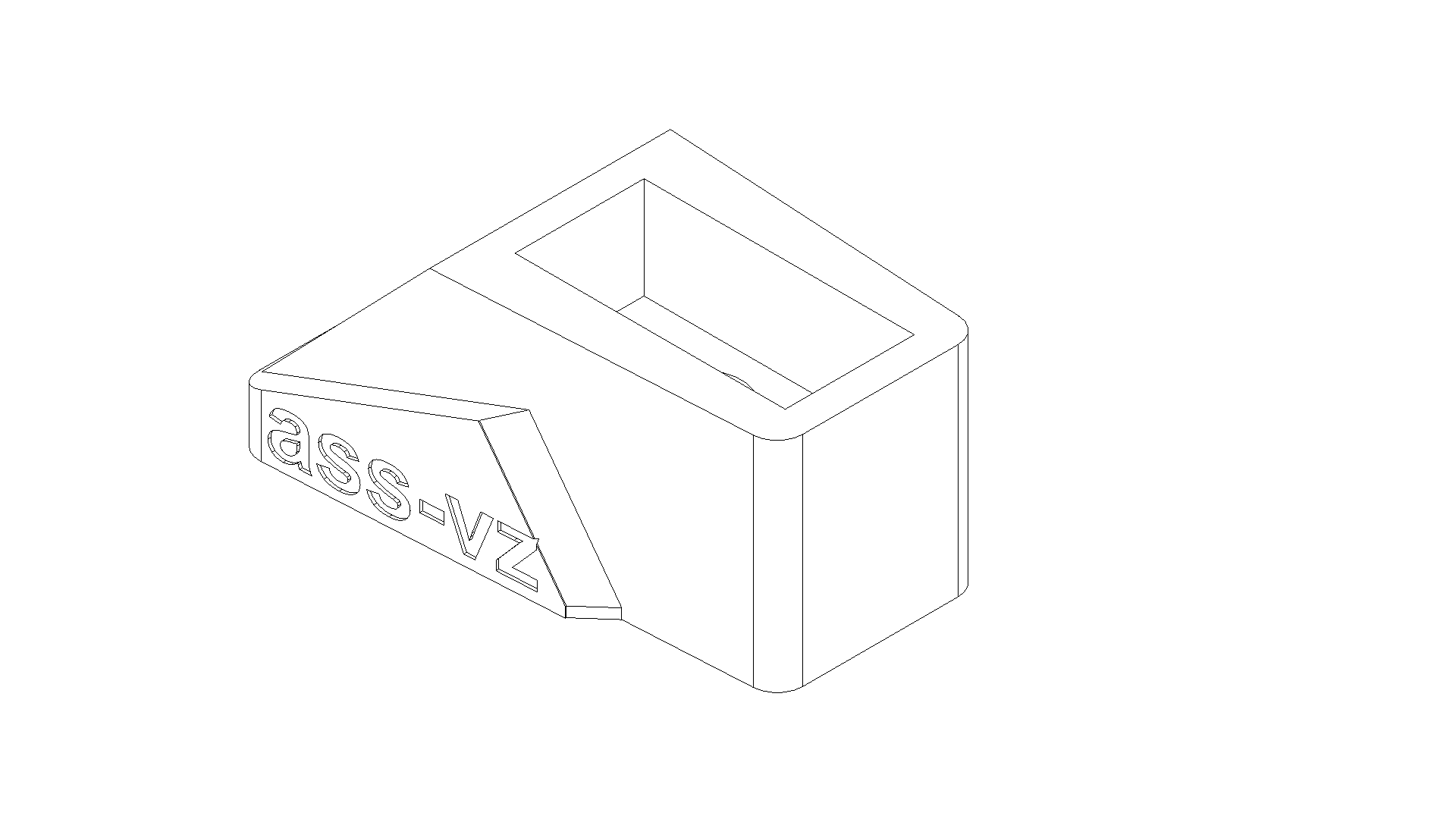

ass-vz connector

1x ass-vz connector

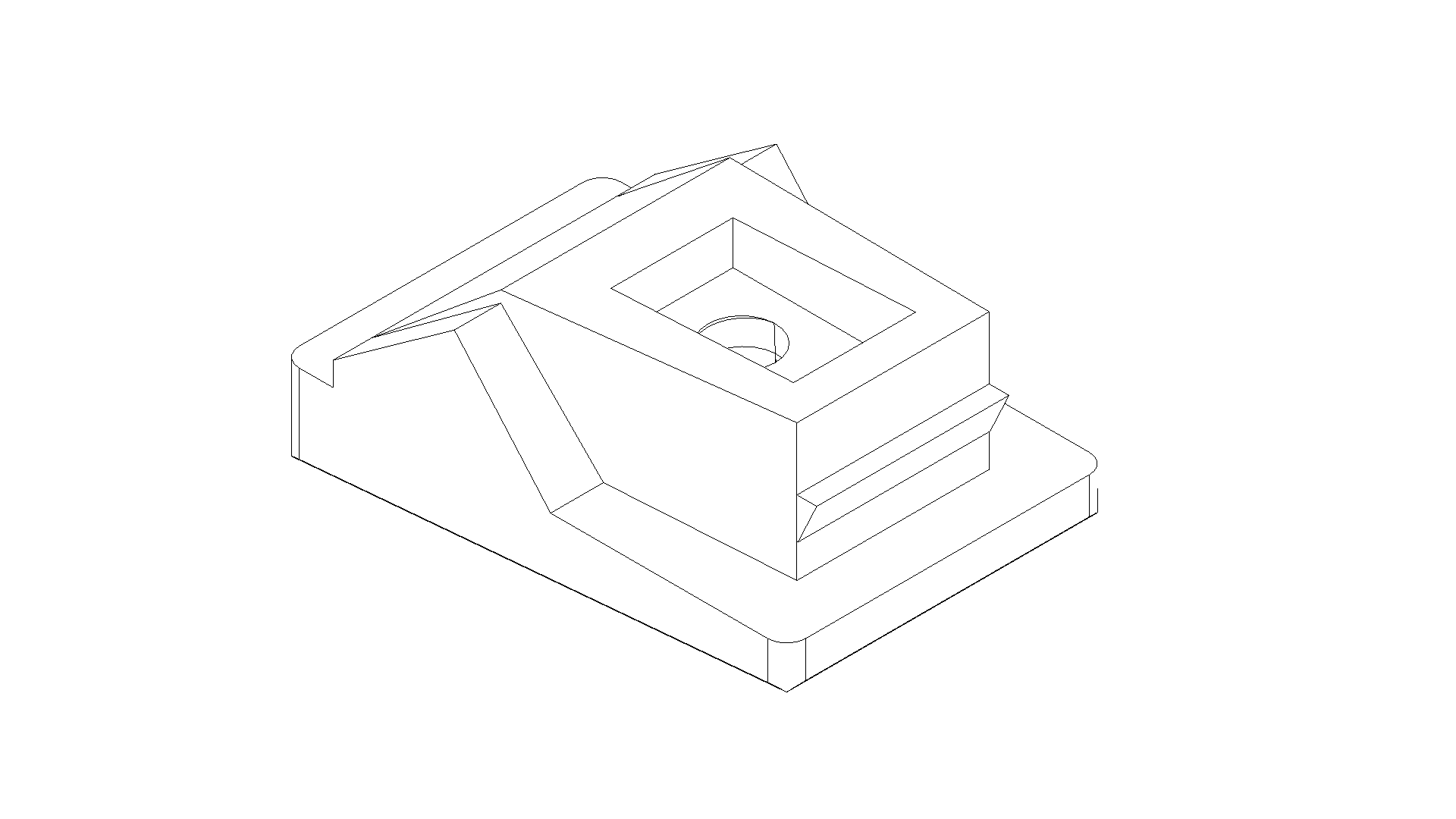

ass-vx connector

1x ass-vx connector

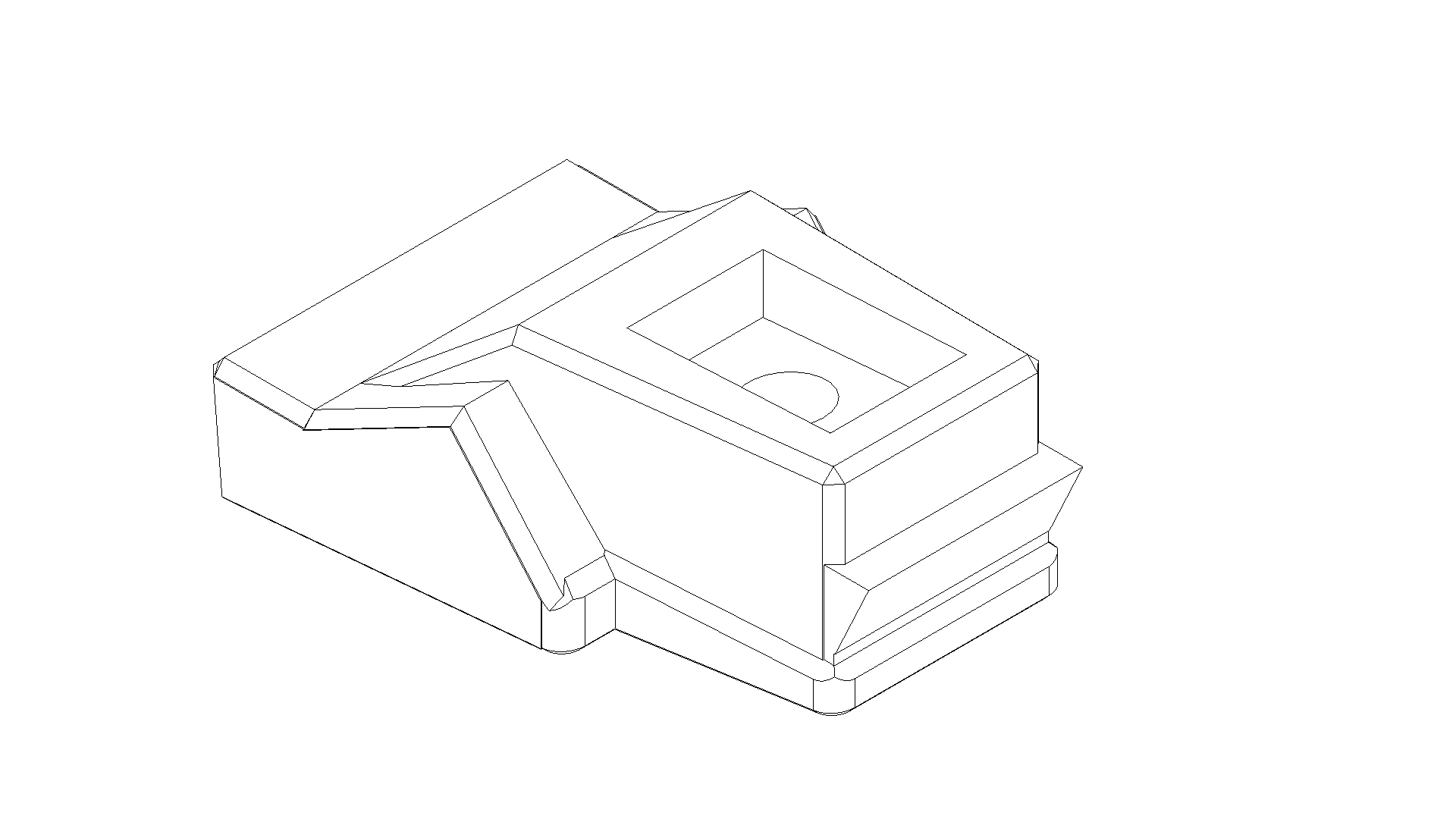

ass-vxhe connector

1x ass-vxhe connector



Horizontal / Vertical Alignment

Not all VESA adapters and monitors are suitable for vertical alignment. (upright)
This is due to the geometry of the adapter / monitor, which is sometimes not otherwise feasible.
We would like to point out that this information should not be disregarded under any circumstances, as the adapter will very quickly reach its durability limit if the mounting is not specified.

We always try to develop monitors for vertical (upright) mounting as well.

The standard orientation of a monitor is horizontal.

Horizontal Mounting: YES

ass-vz VESA adapter (V3)

Vertical Mounting: NO

ass-vz VESA adapter (V3)


Assembly Instruction

Step 1

First, remove the base of your Asus monitor. To do this, loosen the screw under the monitor base. (Figure 1)

Please make sure you have a soft surface when storing the monitor for disassembly / assembly.

ass-vz VESA adapter (V3) Figure 1

Step 2

This adapter works with various ASUS monitors.
There are different connectors you can use. Choose the one that fits your monitor. In the next step, select the appropriate connector. (Figure 2)

ass-vz VESA adapter (V3) Figure 2

Step 3

Check which of the 3 connectors fits your ASUS monitor. (Figure 3)

ass-vz VESA adapter (V3) Figure 3

Step 4

Plug the ASUS VESA adapter onto the connector already in the base. Make sure the marked square snaps into place. (Figure 4)

ass-vz VESA adapter (V3) Figure 4

Step 5

Now tighten the VESA adapter with the supplied screw (SP6). (Figure 5)

Use a Phillips screwdriver for this.

ass-vz VESA adapter (V3) Figure 5

Step 6

This is how the attached VESA adapter should look on your Asus monitor. (Figure 6)

ass-vz VESA adapter (V3) Figure 6

Step 7

We recommend that you have a second person for this step.

Now lift the monitor and hold it against your monitor mount. Fasten the VESA adapter with the 4 M4x14 screws supplied (screw bag: SP6 or SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

ATTENTION: Make sure you use the right screws!

(Figure 7)

ass-vz VESA adapter (V3) Figure 7

Step 8

Please make sure that all 4 screws are tight. (Figure 8)

ass-vz VESA adapter (V3) Figure 8
