The VESA adapter is compatible with the following products from hp (hp.com): 32s.
The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).
Here you can download the manual as a PDF
Place your HP monitor securely on a soft surface.
Now remove the base of your HP monitor if it is attached.
Now plug the VESA adapter onto the monitor. Here, the two pins (yellow) must connect with the adapter.
Please make sure that the adapter is plugged in the correct direction. You can see this by aligning all holes of the adapter with the holes in the monitor (green).

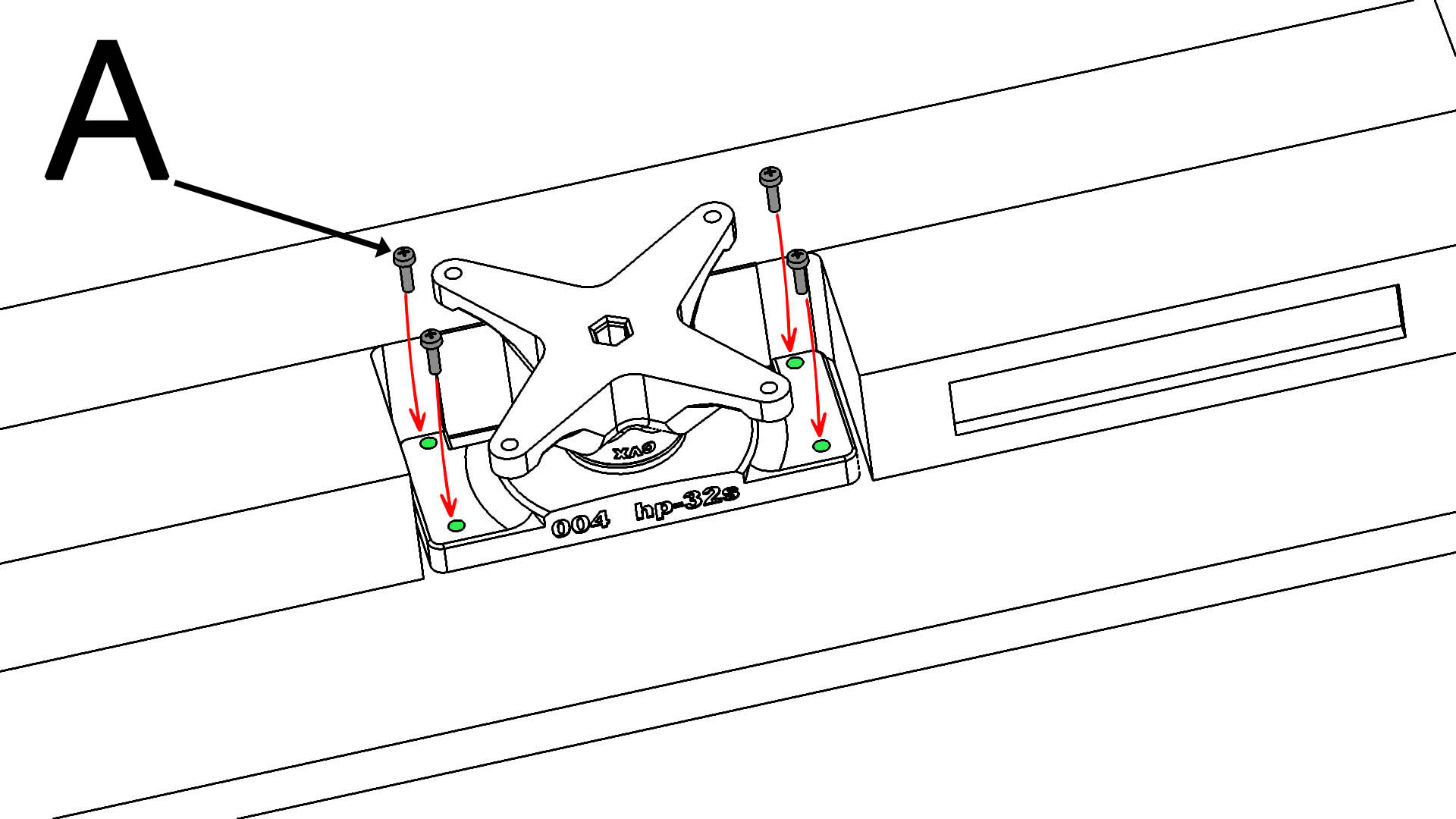

Now fasten the VESA adapter with the included 4x(M4x16) screws.
ATTENTION: Use screw package A!
Please make sure that all 4 screws are tightened firmly.
For this step we recommend a 2nd person.
Now pick up the monitor and hold it to your VESA adapter. It is best to first fasten 2 screws diagonally, so that the monitor can no longer fall down and you can fasten the remaining screws without effort.
ATTENTION: Use screw package B!
Please make sure that all 4 screws are tightened firmly.
- Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if available).
- The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC exhaust or direct sunlight in summer.
- PLA is UV resistant but not suitable for high temperatures.
- Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the VESA adapter.
- Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the performance of the VESA adapter.
The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C and is therefore not suitable for use in the vicinity of direct heat and heat sources.
We wish you a lot of fun with your product.
Your 3idee Team
